Loading ramp for TIN

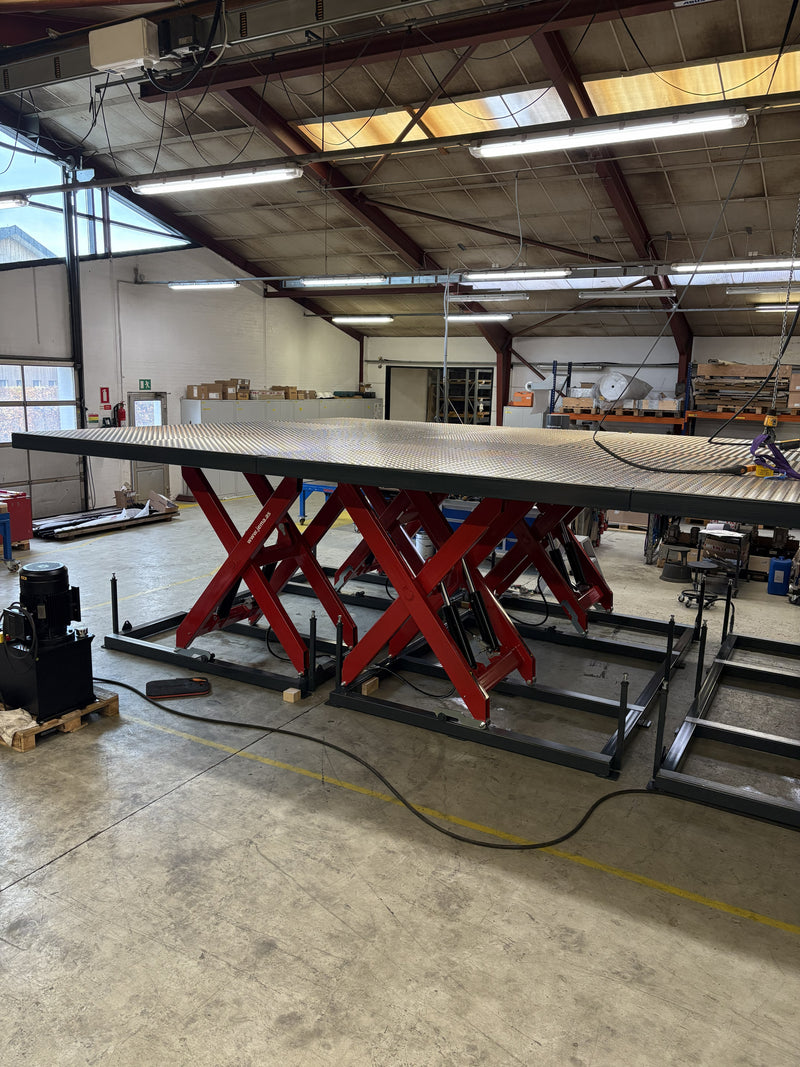

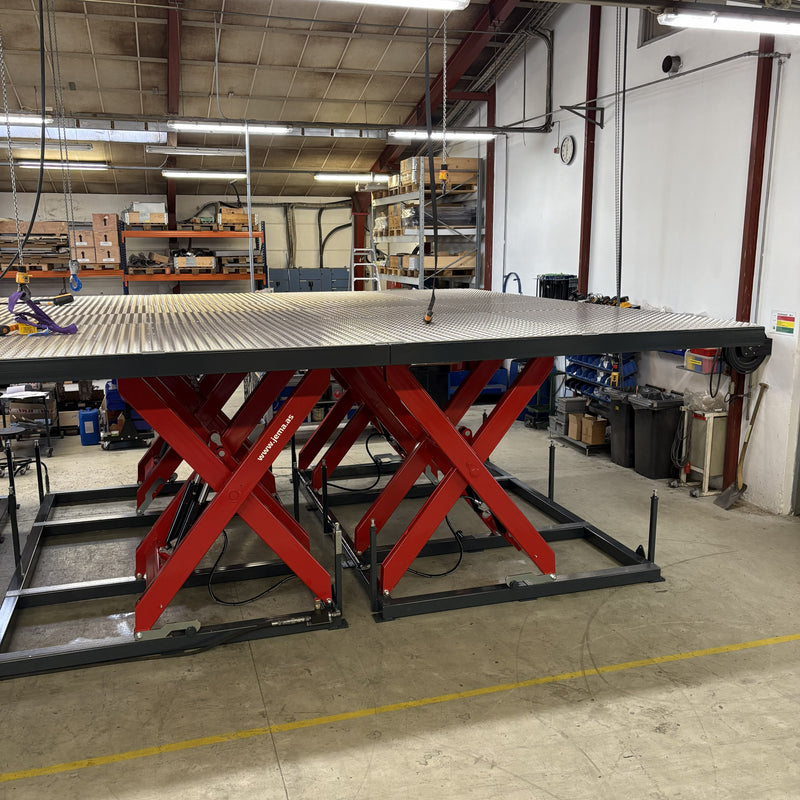

At JEMA LIFT, we pride ourselves on delivering tailor-made solutions that meet even the most demanding requirements. One of our latest special projects is for the Norwegian dairy company TINE SA, for whom we have designed and manufactured an extra-large and powerful lifting table for their department in Trondheim. The solution is based on model SP-100005000T30 and has been developed specifically as a loading ramp for lorries, which places high demands on strength, safety and ease of use. The lift table measures 10,000 x 5,000 mm and has a lifting capacity of up to 30,000 kg, making it suitable for heavy logistics and efficient goods handling.
Tekniske specifikationer
Model: SP-100005000T30Lifting capacity: 30,000 kg (statically distributed load) Platform size: 10,000 x 5,000 mm Lifting height: 800–2,050 mm Travel: 1,250 mm Lifting time: approx. 2 cm/sec (approx. 1 minute for full travel) Motor: 11.5 kW – 1400 rpm Electrical connection: 3 x 400V AC / 50 Hz Colours: Grey RAL 7016 and Red RAL 3001 Control: Operation from 3 levels via 3 control boxesExternal electro-hydraulic unit with 3 metre cableSafety equipment: Guard, height stop and shielded safety strips on all sidesPassenger transport: Not permitted
Extra focus on safety and durability

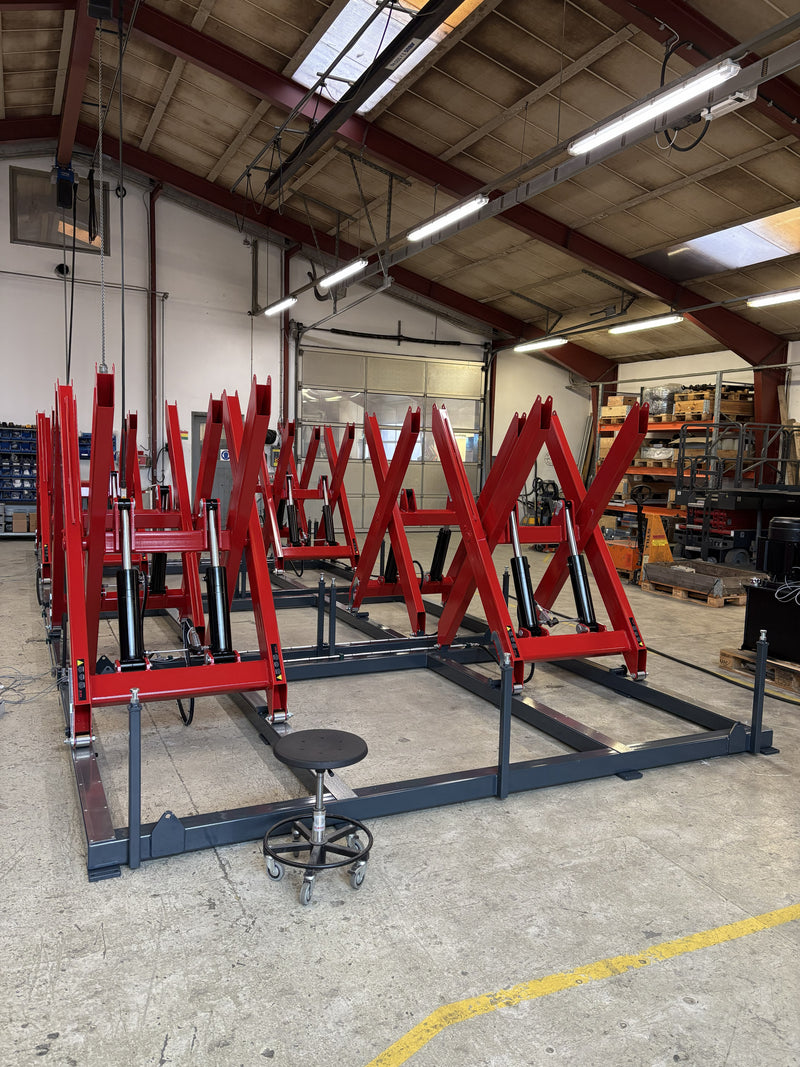

The lift table is equipped with a mechanically adjustable stop in the base frame, adjustable height stops, and guards on both long sides and one short side – all to ensure safe and stable operation. It is designed for a maximum of 80 lifts per day and can easily withstand intensive daily use. The entire structure is built from high-strength sectional steel, which provides great lateral stability. Long bushings with grease nipples in all moving joints ensure a long service life and minimal maintenance. Service inspections in accordance with applicable health and safety regulations – also on equipment from other manufacturers.
Quality with documentation
Like all JEMA LIFT products, this lifting table has been tested, CE marked and comes with a test certificate and documentation in accordance with DS EN 1570 and the Machinery Directive. We also offer annual service inspections in accordance with current health and safety regulations – including for equipment from other manufacturers.
